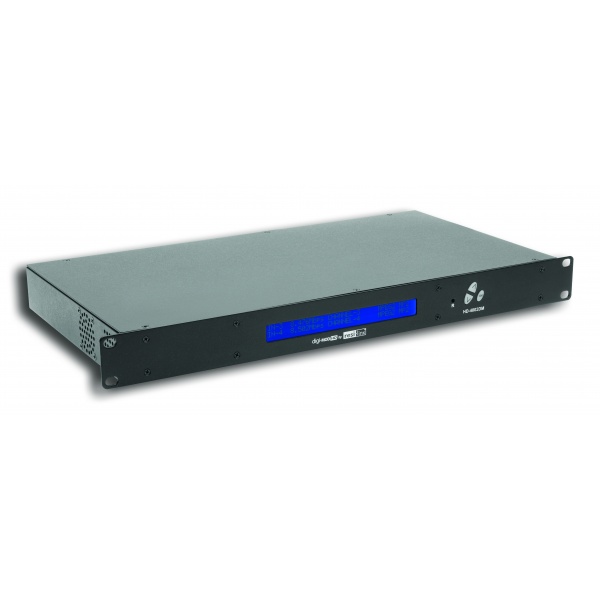

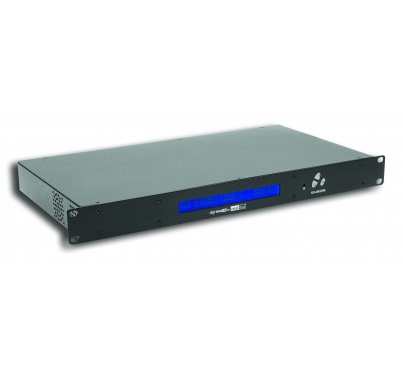

HD4002DM
HD-4002DM - Professional Quad Input High Definition DVB-T MPEG-2/4 Digital Modulator
Where's the price?
This product may be a discontinued item, but more importantly, make sure you are logged in with your trade account! resi-linx.com is a trade only website. You can sign up and apply for trade membership to get access to pricing and the ability to add to cart. Alternatively, seek out your local resi-linx dealer for purchase enquiries.
The HD-4002DM is a Quad Input High Definition DVB-T Professional Commercial Modulator. Dual mode DVB-T distribution with both MPEG-2 / AVC (MPEG-4) encoding - along with IP Streaming available in the one product - ensuring the product is compatible with all HD TV's. Up to 1080P HD Distribution: 576i / 720P / 1080i / 1080P(AVC only).
Features
- Quad Input High Definition DVB-T Modulator that converts HD video and audio signals to digital COFDM DVB-T Channel
- Dual Mode - MPEG-2 & AVC (MPEG-4) Encoding
- Simulcastng IP Multicast Broadcasting
- Distributes 576i / 720P / 1080i / 1080P picture quality (1080P only available on AVC)
- Programmable Channel, Network Names and LCN
- HDMI, Component, CVBS, Analogue Audio, Digital Coaxial/Optical inputs
- MER - 43dB
- Full function front LCD display for adjustments
- Web Management for easy programming and monitoring
- 2K/8K Carriers
- Adjustable VHF / UHF Output (6-69)
- Adjustable Attenuation (98dB launch)
- Desk, Wall and Rack Mountable
- Video Input: HDMI / Component / CVBS
- Audio Input: HDMI / Analogue Stereo / Digital
- Resolutions Supported: 576i / 720P / 1080i / 1080P
- Output Channels: 6-69
- Output Connector: F type
- Output Level: 98dBuV
- Output Level Adjustment: 20 dB typ.
- Number of Inputs: 4
- Video Resolution: MPEG - 2 / H.264 (MPEG -4)
- Remote Setup install manual
- HD-4002DM Installation Manual
- HD-4002DM Product Profile
- IP Streaming Setup
